Lea Professional CONNECT 164 4 Channel Power Amplifier 160 Watts per Channel, New

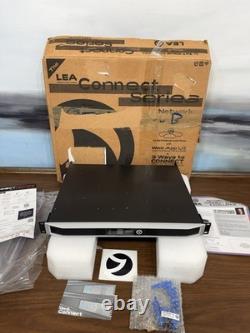

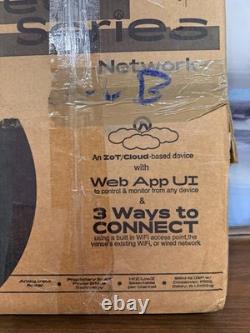

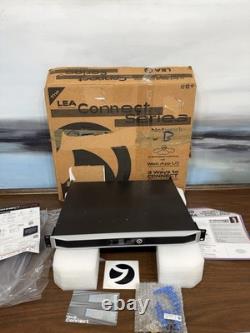

Lea Professional CONNECT 164 4 Channel Power Amplifier 160 Watts per Channel. The condition is new open box. Pictures are part of the description so please see them carefully and make your own conclusion about the item's. WHAT YOU SEE IS WHAT YOU GET.

Feel free to any questions. Is very important for Us make our costumers happy's. More information about the product. Lea Professional CONNECT 164 4 Channel Power Amplifier with 160 Watts per Channel.

The CONNECTSERIES 164 is a 4-channel amplifier with 160 watts per channel. As part of the Network CONNECTSERIES, the world's first Internet of Things- (IoT) enabled professional-grade amplifiers, it is perfectly suited for small to medium-scale installations. The 164 features direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built-in Wi-Fi access point, connect to the venue's Wi-Fi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable. Then there's the Cloud. Network CONNECTSERIES is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications, and more from any of your personal devices. Just connect your amp to a network and start commanding your systems. Register for your free LEA Cloud account at leaprofessional. The Network CONNECTSERIES also features analog inputs and external I/O control for remote on/off and fault monitoring. INPUTS: Analog: 4 Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity. THD+N: 0.1% (20Hz to 20kHz). SIGNAL TO NOISE LEVEL: 105dB (20Hz to 20kHz referenced to 8? CROSSTALK: 70dB (20Hz to 20kHz). AMPLIFIER OUTPUT CLASSIFICATION: Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel. DSP ARCHITECTURE: Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters. INPUT MATRIX: Routable matrix; any input to any output with primary and secondary input priority. CROSSOVERS: Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth).

PARAMETRIC EQ: 8 Band Parametric EQ per channel. OUTPUT DELAY: 100ms per channel. OUTPUT PROTECTION: DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection.

USER ADJUSTABLE LIMITING: Peak Voltage and RMS Voltage. LOAD MONITORING: Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources. EXTERNAL I/O: External I/O In: Toggles Remote On/Off. External I/O Out: Indicates Amplifier Health. AC MAINS: 100VAC - 240VAC +/- 15% 50Hz or 60Hz.

POWER SUPPLY: Universal Switch Mode Power Supply. DIMENSIONS (L X W X H) Product: 14.25" x 19" x 1U (362mm x 482mm x 1U) x 1U (362mm x 482mm x 1U). COOLING: Front to Rear Variable Fan Speed Cooling.
