Replacement Amplifier JBL EON 610, EON 612, EON 615 Powered Speakers

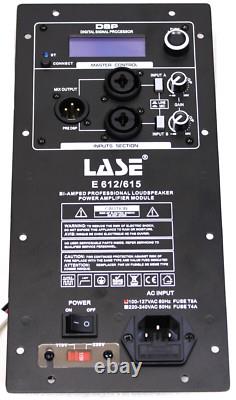

LASE E612/ E615 Replacement Amplifier Module for JBL EON 610 / 612 / 615 Powered Speaker Series. Control panel is simple and neatly laid out, with the user controls being restricted to power, a rotary level control, and a pair of push switches for selecting'EQ' Boost/Flat. There are two XLR connectors, one for signal input and one for link out, so that additional speakers or systems can be daisy-chained.

The input socket is one of those handy'combi' types, and will accept either a three-pin XLR or a standard jack plug (balanced or unbalanced). 400W RMS (overall); 800W (Peak).) : 20 Hz - 34 kHz. Crossover Frequency : 1.8 Khz. 20 Hz - 20 kHz for 1 W. Input Connector (per channel):3-pin XLR, 1/4 phono, electronically balanced. Balanced Male 3-pin XLR " Mix Out". Operating voltage : The voltage can be shifted by the panel power switch from 100-127V 60 Hz to 220-240V 50Hz. (L×W×D) : 11.02" x 5.12" x 2.94 (280mm x 130mm x 100mm).

Packing dimension : 12.6" x 8.66" x 2.71. (320mm x 220mm x 145mm).

Net weight :2.42lbs (1.1Kgm). Gross weight :3.31lbs(1.5Kgm). IF YOU HAVE ANY OTHER QUESTIONS, PLEASE LET US KNOW. POR FAVOR TOME EN CUENTA. SI TIENE ALGUNA OTRA PREGUNTA, POR FAVOR DEJANOS SABER.
